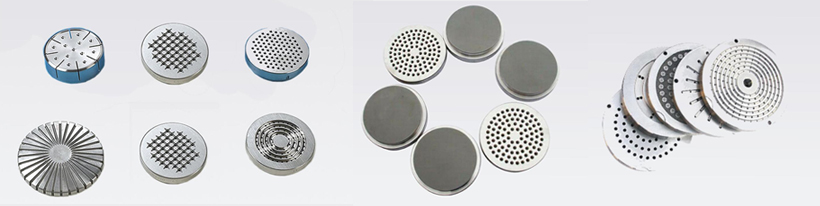

Cleaning Objects:
a. Polyester Super Microfilaments spinneret ,Shaped spinneret,Composite spinning spinneret
B. Number of holes in the 144,288 or more filament spinneret
C. Diameter of spinneret less than 0.16mm.
Cleaning Objects

Features:
The horn resonator (upper) ultrasonic combined with the fixed resonator (lower) ultrasonic;
High frequency combined with low frequency. Two types of ultrasonic cleaning system both work.
Electrical control parts: PLC controller, central & individual control.
Specifications:

Model	NFU-1520S-Z	NFU-1520D	NFU-1520T
Cleaning capacity	28pcs	32pcs	48pcs
Horn Frequency	15KHz	15KHz	15KHz
Ultrasonic Power(Horn)	4000W	4000W x 2	4000W x 3
Power Density	15-17W/cm2	15-17W/cm2	15-17W/cm2
Fixed Frequency	20KHz	20KHz	20KHz
Ultrasonic Power(Fixed)	700W x 4	800W x 4	800W x 6
Power Density	0.5-1.0W/cm2	0.5-1.0W/cm2	0.7-1.2W/cm2
Outline Dimension	2300×1100×1450	2630×1100×1450	2630×1350×1450
Cleaning Tank Dimension	2000×550×330	2300×550×330	2300×800×330
Control Panel Dimension	650×650×1860	650×650×1860	650×650×2060
Horn	Circle	Circle	Circle
Material of Horn	TC4	TC4	TC4
Material of Fixed resonator	SUS316L,Chromeplate	SUS316L,Chromeplate	SUS316L,Chromeplate
Power Supply	380V 50Hz	380V 50Hz	380V 50Hz
Heating Power	9KW	9KW	9KW
Working Temp.	50 degree	50 degree	50 degree
Inlet	DN20	DN20	DN20
Outlet	DN40	DN40	DN40
Cleaning Time	2-3 hours	1-2 hours	1-2 hours

Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on Spinneret of φ104mm.
Main Part:

Cleaning Method:

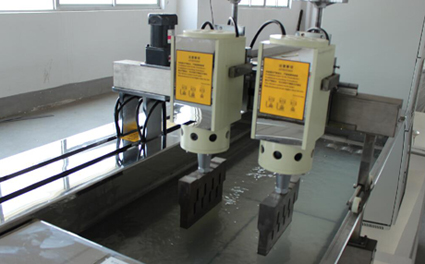

Horn Resonator & Fixed Resonator, two types of ultrasonic cleaning device both working. The horn resonator is cleaning by positioning.

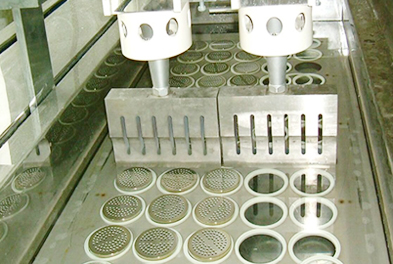

Horn resonator is installed under the upper of cleaning tank, is used to cleaning up the top surface of works.
Fixed resonator is fixed under the bottom of cleaning tank,is used to cleaning up the back side of spinneret.
Because the working surface of horn resonator is small, each spinneret is cleaned by positioning. so it is necessary to install reciprocating & Position device.
The control cabinet is used to control the cleaning device operation, display equipment running status，place the ultrasonic generator.
Generator part:
The control cabinet is used to control the cleaning device operation, display equipment running status，place the ultrasonic generator.
