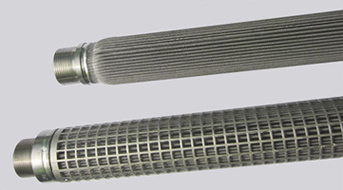

Cleaning Objects: Filter of PET, PBT, PA, R-PET, particularly suitable for high filter precision filter.
Cleaning Objects

Features:
It is using horn type ultrasonic cleaning on the filter (according to the amount of cleaning, choose single or double)
It is sure to 360 degree operation with no dead angle when ultrasonic moving.
Z travel mode: the Horn type (upper) ultrasonic is moved in Z travel and cleans candle filter one by one.
Fully automatic process with PLC for cleaning of filter elements.
Specifications:

Model	NFU-1530S	NFU-1530D	NFU-1530D-Z
Cleaning capacity	3pcs	6pcs	6pcs
Horn Frequency	15KHz	15KHz	15KHz
Ultrasonic Power(Horn)	4000W	4000W x 2	4000W x 2
Power Density	15-17W/cm2	15-17W/cm2	15-17W/cm2
Outline Dimension	2200×1020×1450	2200×1220×1450	2200×1220×1450
Cleaning Tank Dimension	1840×480×300/320	1840×680×300/320	1840×680×300/320
Control Panel Dimension	650×650×1460	650×650×1460	650×650×1860
Horn	Rectangle	Rectangle	Rectangle or circle
Material of Horn	TC4	TC4	TC4
Power Supply	380V 50Hz	380V 50Hz	380V 50Hz
Heating Power	6KW	9KW	9KW
Working Temp.	50 degree	50 degree	50 degree
Inlet	DN15	DN15	DN15
Outlet	DN40	DN40	DN40
Cleaning Time	1-2 hours	1-2 hours	1-2 hours
Cleaning Model	X-axis travel	X-axis travel	X/Y-axis travel

Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on filter of φ60×1215/1239mm.
Typical models:

　　　　　　NFU-1530S　　　　　　　　　　　　　NFU-1530D　　　　　　　　　　　　NFU-1530T


　　　　NFU-1530S-Z　　　　　　　　　　　　　　NFU-1530D-Z　　　　　　　　　NFU-1530D(intergrated)

Cleaning method:
Horn Resonator ,It is cleaned by horn resonator, and the filter is rotating at all the cleaning time.
Horn resonator is installed under the upper of cleaning tank,is used to cleaning up the top surface of works.
The control cabinet is used to control the cleaning device operation, display equipment running status.
Generator part:
using high speed embedded processor; DDS digital frequency synthesis technology to keep frequency precise and stable and tracking in time.
